Hydraulic fruit press GBP-12 - Wine press

• Basket capacity: 12 liters
• Basket height: 250 mm
• Basket diameter: 243 mm
• Dimensions and weight of the press: 38x46x61 cm, 19 kg
• Dimensions and weight of the packaging: 43х51х66 cm, 23 kg
• External diameter of the drain pan tube: 22 mm
• Performance: 50 liters per hour
• 3 years warranty
• Made in Latvia

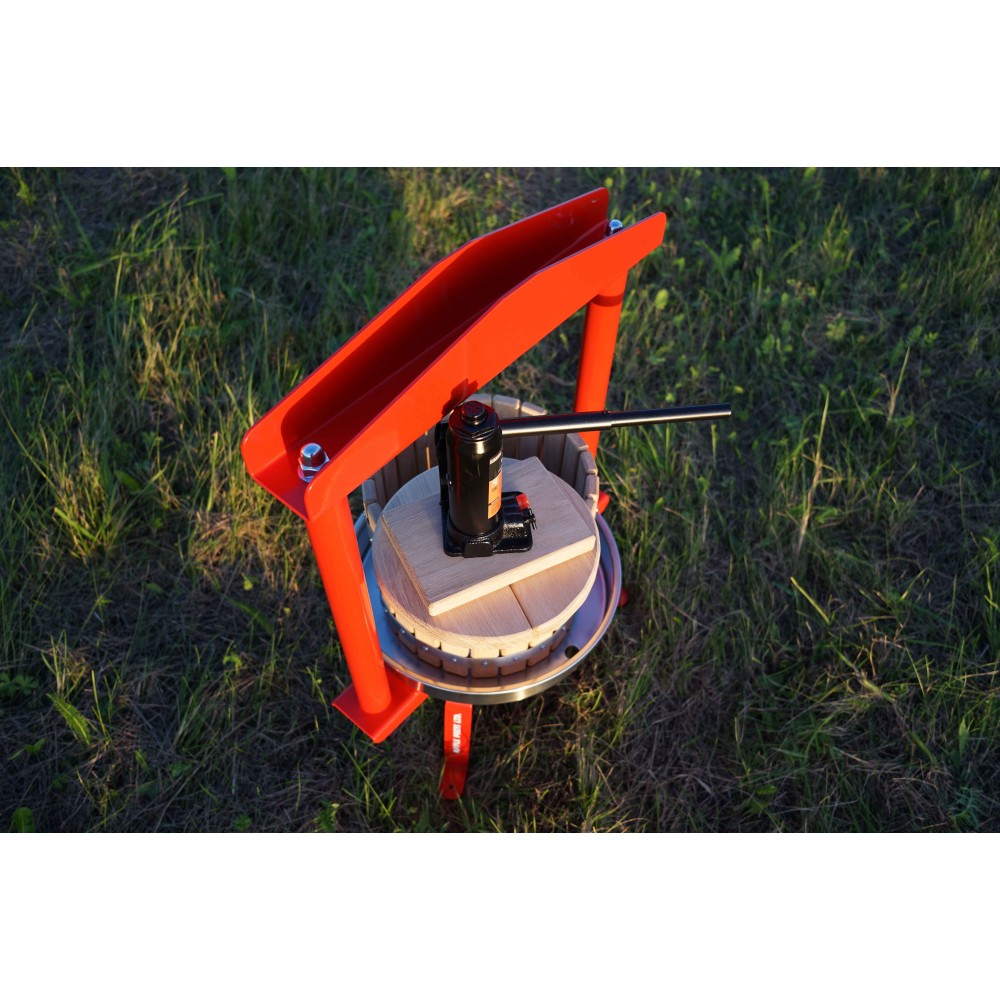

The smallest model of hydraulic fruit press for home use. Due to its small weight and dimensions, it can be easily used by a person of any age.

1 bucket of crushed apples is placed in the basket. In one cycle of operation (loading crushed fruit, squeezing juice, unloading) 6-8,5 liters of juice can be produced.

For crushing fruit in terms of productivity, an electric fruit crusher ESE-018 is enough. With this kit, more than 50 liters of juice per hour can be squeezed, if several people work at the same time, for example, the whole family. The first person picks and washes the fruit, the second crushes the apples, and the third person presses the juice. This fruit press can also be used for pressing juice from pears, grapes, other berries, other fruits and vegetables.

If you have larger apples growing in your garden (more than 85 mm in diameter), you can skip cutting the apples before crushing by choosing a larger model of the crusher, for example, ESE-055 (it’s feeding hole diameter is 125 mm).

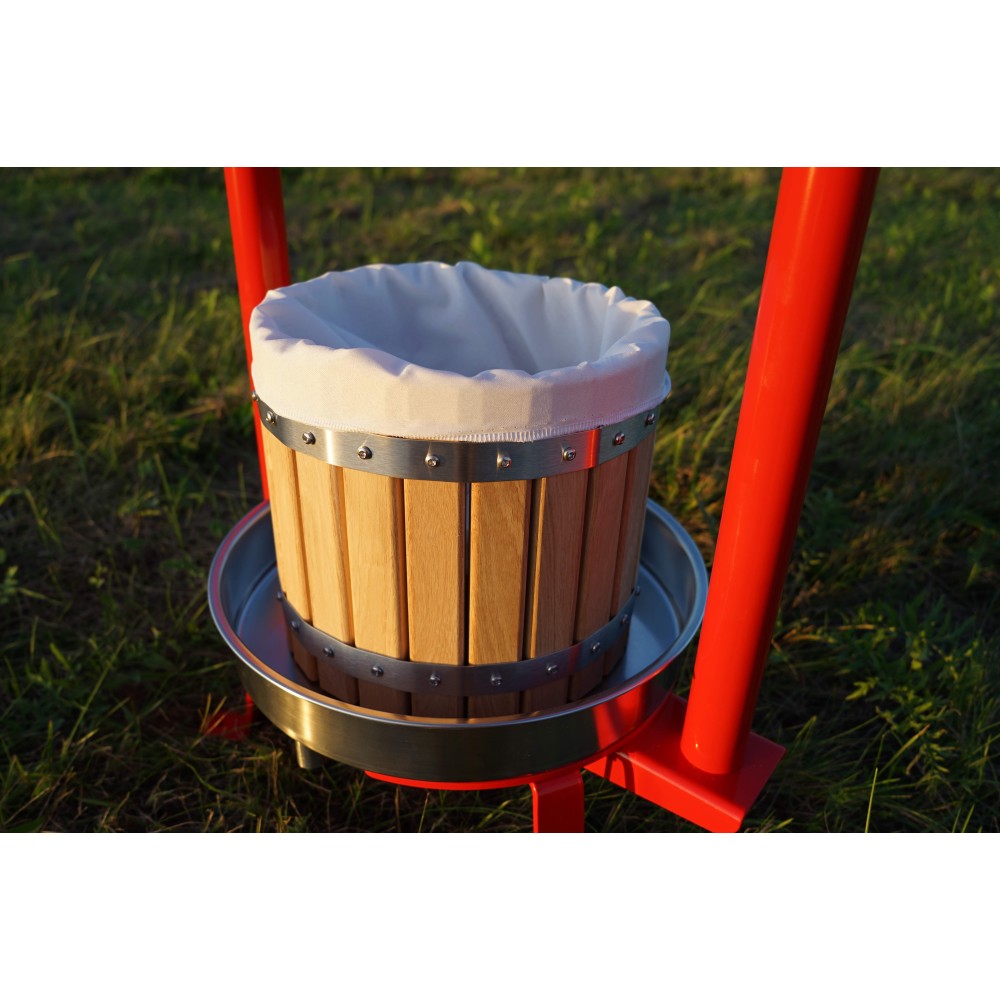

Oak basket and piston

All parts of the press in contact with the juice, as well as all fasteners are made of natural oak or food grade stainless steel (AISI 304).

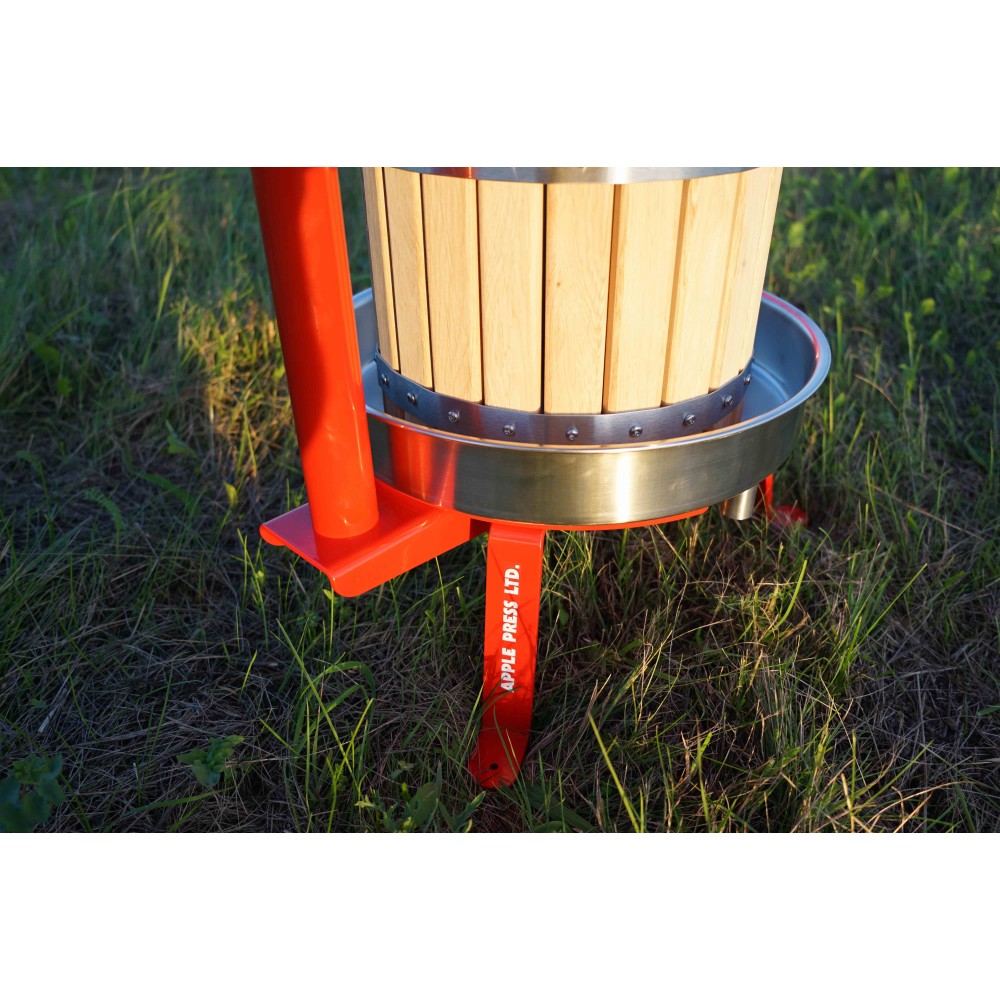

Stainless steel drain pan

The juice collection drain pan and basket rings are made of food grade stainless steel AISI 304, the drain pan wall thickness is 0,8 mm.

Convenient design

Powder coating of the frame creates a strong and durable protective coating. On the top of the frame there is a special stop for centering the jack.

There are plastic feet on the base of the press for easy carrying and protection of the frame coating.

For the convenience of working with the press, a silicone tube can be put on the tube of the drain pan, the other end of which can be placed in the juice container. For this press, a 20x26 mm tube is suitable.

Everything you need to get started is already included in the set

The press set includes: metal frame, juice collection drain pan, basket, piston, wooden blocks (pine) – 2 pcs., 2T hydraulic jack, filtration bag (100% polyester), user guide.

Choosing a juice filtration bag

To obtain pure juice with a minimum pulp content, you need to use bags with a fine mesh: 100% polyester (lavsan) or 100% linen. Such a bag is suitable for squeezing juice from apples, pears, pineapple, ginger, rhubarb, grapes and other juicy hard fruits, berries or vegetables that contain large fibers. Berries and fruits with fine fibers will clog the filtration bag (e.g. black currant, plum, peach, etc.).

Linen fabric is very strong, one of the few fabrics that is stronger when wet rather than when dry. Linen bags are a little bit more expensive, but more environmentally friendly, since when replacing the bag, plastic does not get into nature. Linen is a natural fiber that is completely biodegradable.

If you would like to have juice with pulp, then you need to use a bag with a coarse mesh (100% polypropylene). Such a bag is suitable for pressing juice from plums, apricots, peaches, red currants, black currants and other berries and fruits. A coarse mesh bag can also be used for apples, pears and grapes, but the juice will be less clear in this case.

Recommendation: It is always good to have one spare bag so that the juice making process does not stop due to a torn filtration bag.
