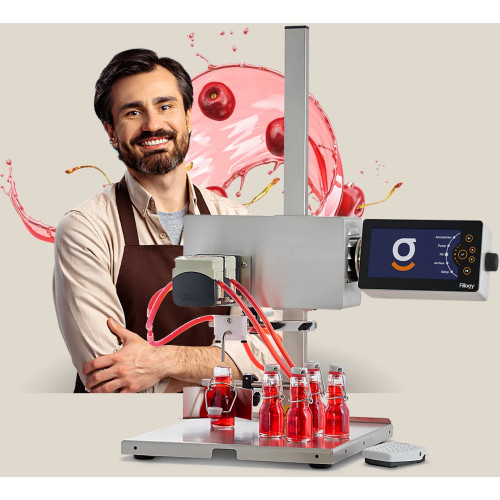

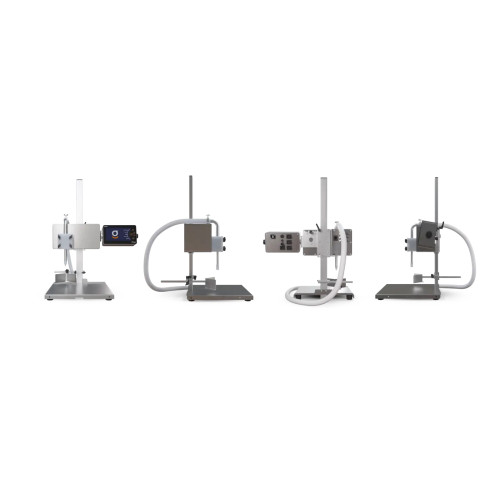

Semi-automatic bottle filling machine FILLOGY® Liquid S

FILLOGY® Neo Liquid S

Equipment for liquid filling, including: Oils, vinegars, and liquors; Fruit juices, smoothies, and non-carbonated beverages; Milk, drinking yogurt, sauces and dressings; Cleaning supplies; Mineral oils; Flavors and e-liquids.

Primary application range:

Optimized for container sizes ranging from 200 to 2,000 ml, with an adjustable quantity from 1 ml to 99,999.9 ml.

Customer advantage:

Rapid, accurate, and adaptable filling with effortless cleaning.

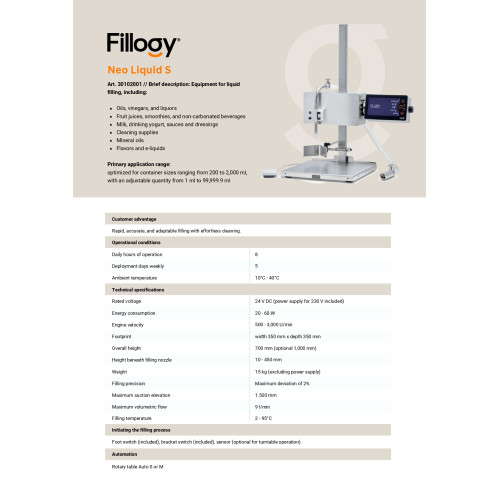

Technical specifications

• Rated voltage: 24 V DC (power supply for 230 V included)
• Energy consumption: 20 - 60 W
• Engine velocity: 500 - 3,000 U/min
• Footprint: width 350 mm × depth 350 mm
• Overall height: 700 mm (optional 1,000 mm)
• Height beneath filling nozzle: 10 - 450 mm
• Weight: 15 kg (excluding power supply)
• Filling precision: Maximum deviation of 2%
• Maximum suction elevation: 1,500 mm
• Maximum volumetric flow: 9 l/min
• Filling temperature: 2 - 95°C
• Made in Germany

Operational conditions

• Daily hours of operation: 8
• Deployment days weekly: 5
• Ambient temperature: 10°C - 40°C

Initiating the filling process

• Foot switch (included)
• Bracket switch (included)
• Sensor (optional for turntable operation)

Automation

• Rotary table Auto S or M

Why this machine is the right one for you:

• The pump used conveys liquid products gently and precisely
• Hot filling up to 95°C is possible
• The filling machine draws the product directly from the storage container
• All parts in contact with the product are food-safe - easy to dismantle and clean, even during daily operation

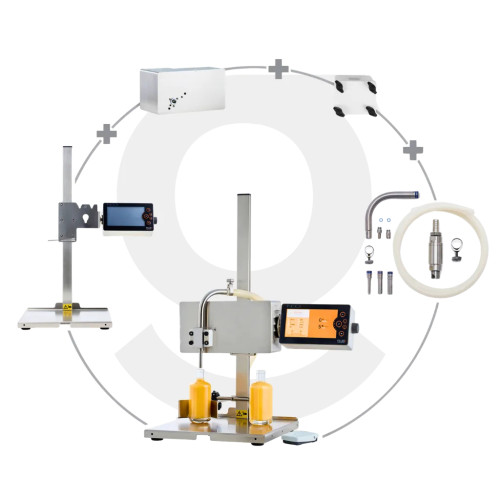

SCOPE OF DELIVERY

art. 30102001, FILLOGY® Neo Liquid S: FILLOGY® Neo, FG 3000, Pump Head S, Hose Set, Liquid S; to be supplemented with Gears S

art. 30207300, Gear pair for pump head S (2°C-95°C). Material: Lexan.

OPTIONAL

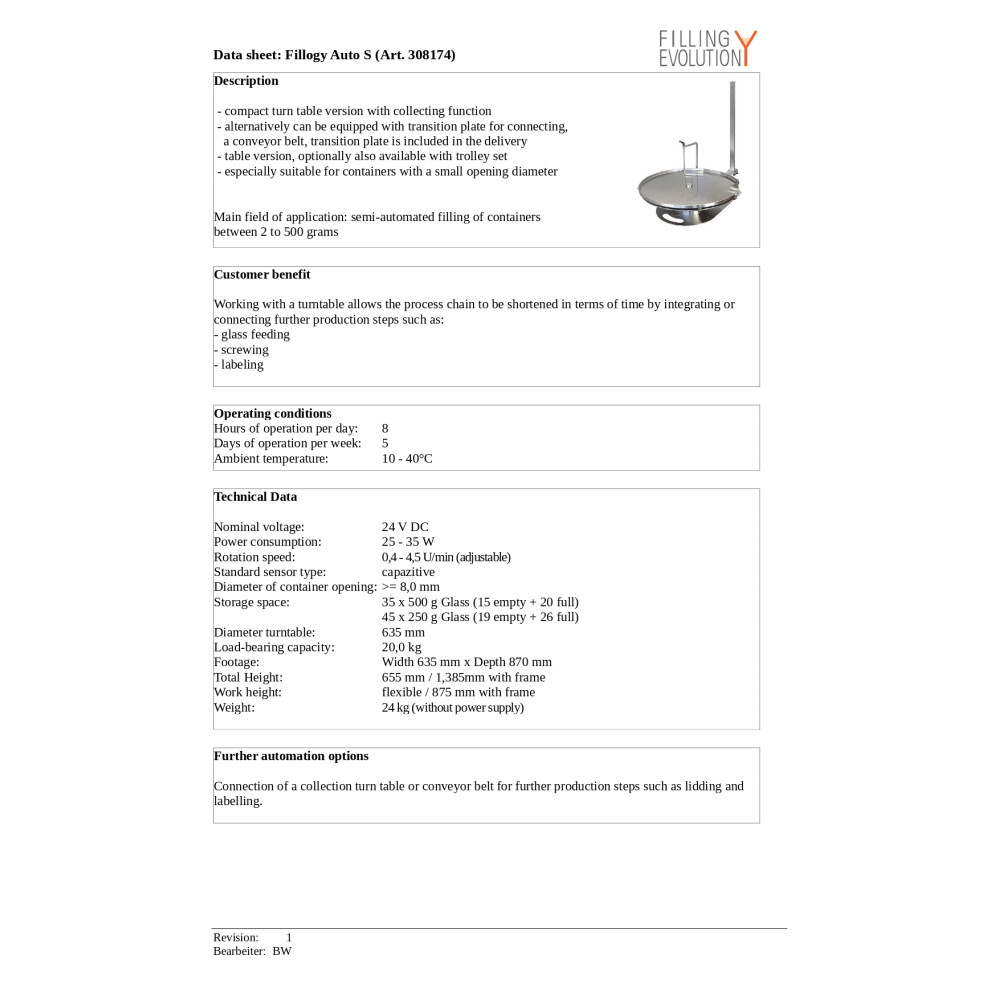

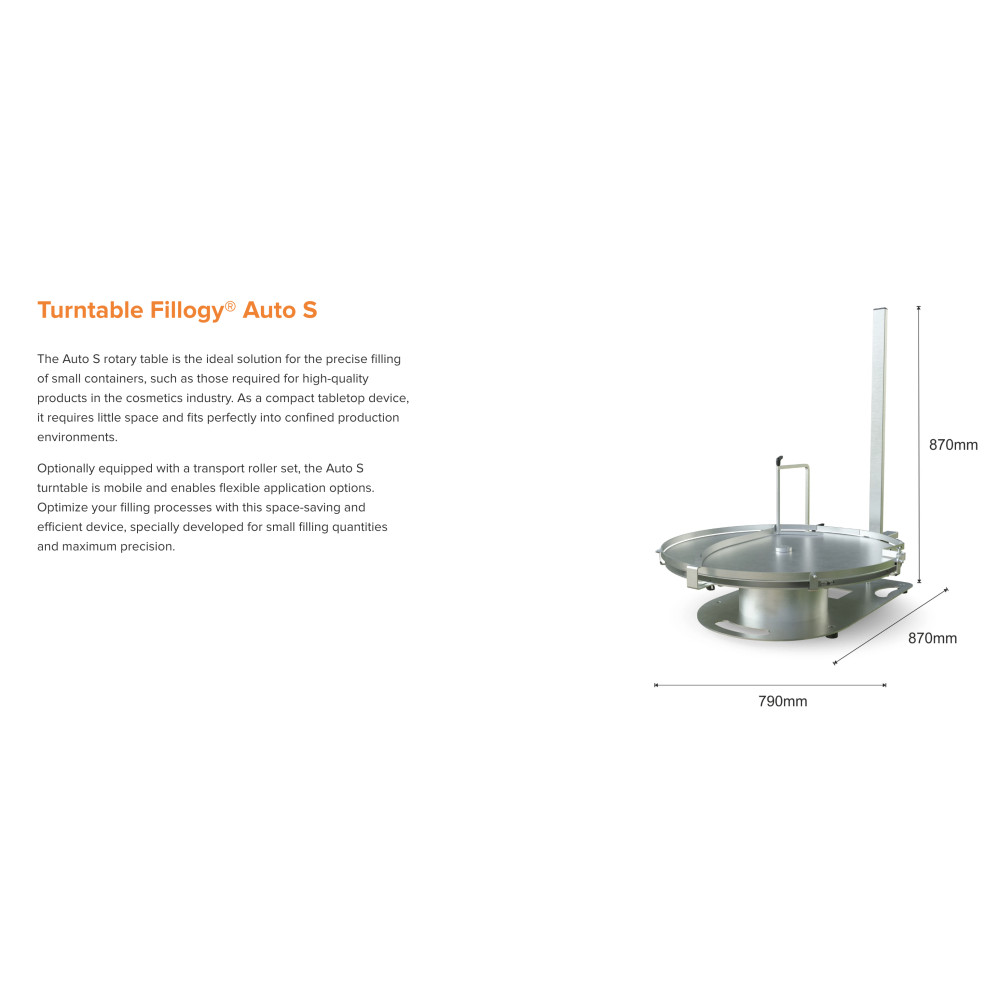

art. 30817400, Auto S turntable incl. conversion kit for open railing

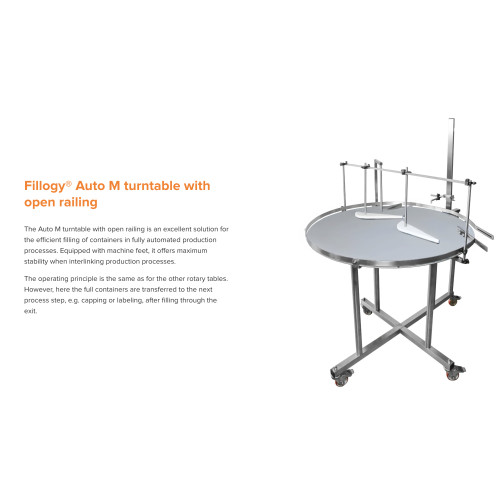

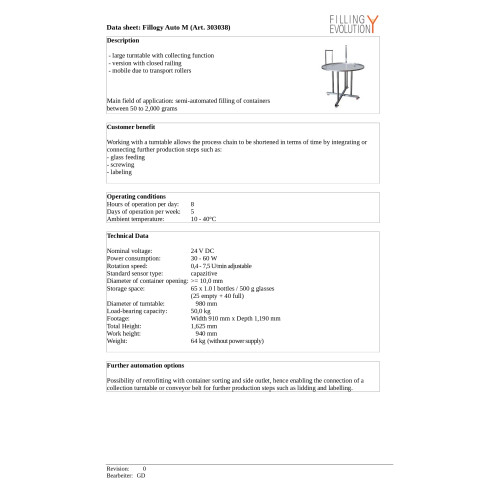

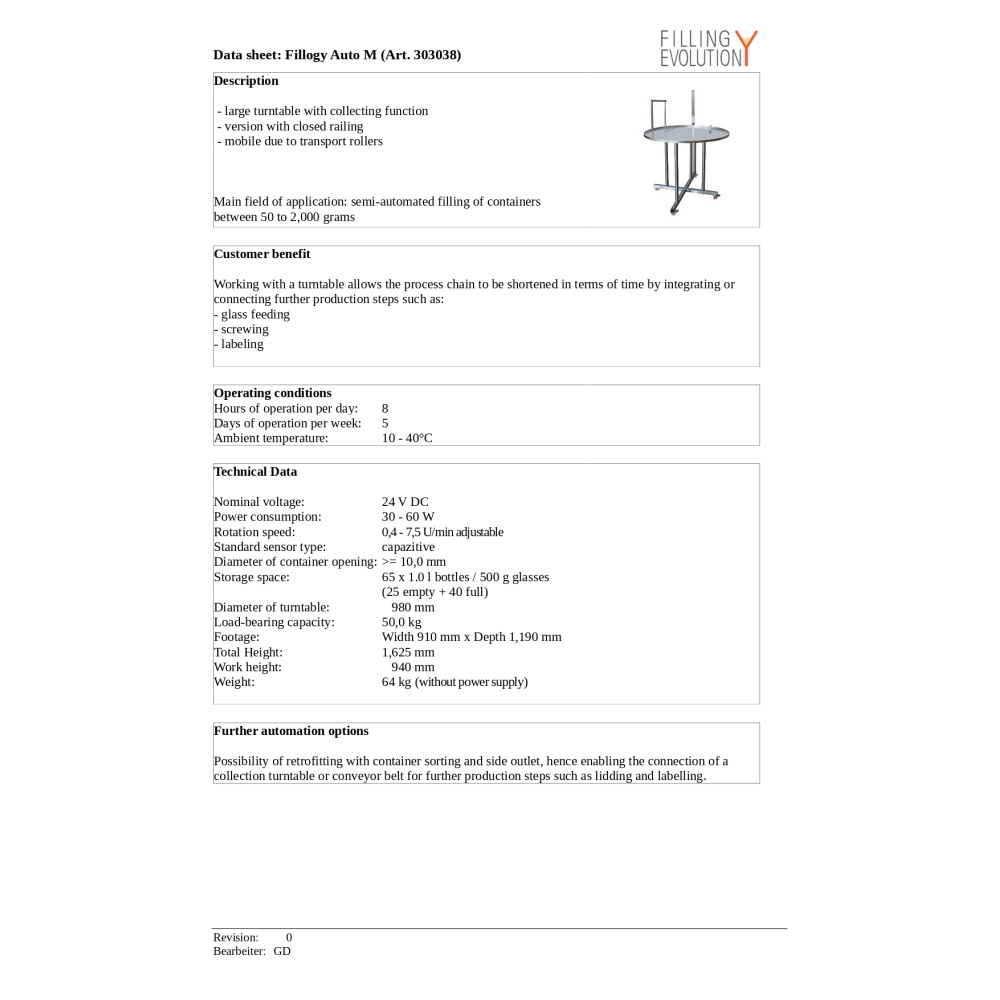

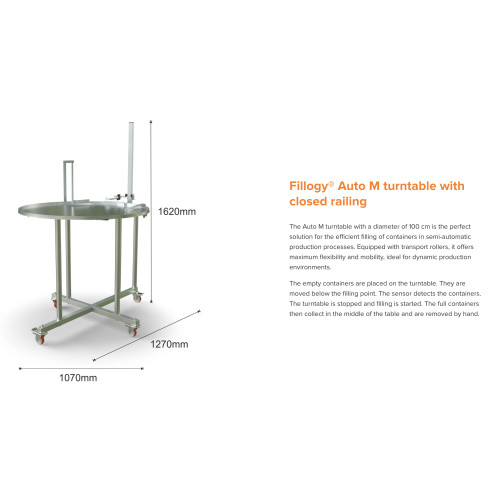

art. 30303800, Auto M turntable, with enclosed railing and transport wheels (Turntable Ø 100 cm) Note: Sensor must be ordered separately!

art. 30813100, Capacitive sensor with sensor connection cable for rotary table FILLOGY® Auto S / M, reliably detects glass containers

art. 30304000, Optical (fiber-optic) sensor

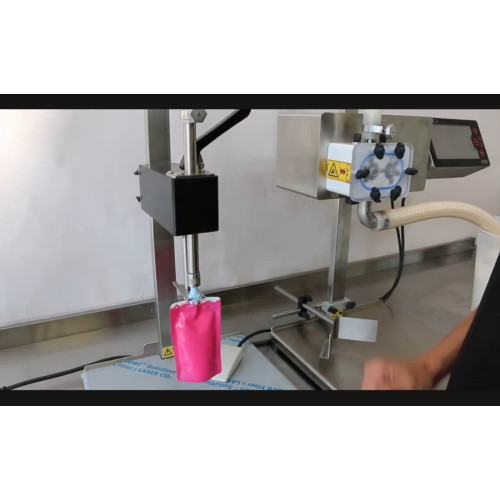

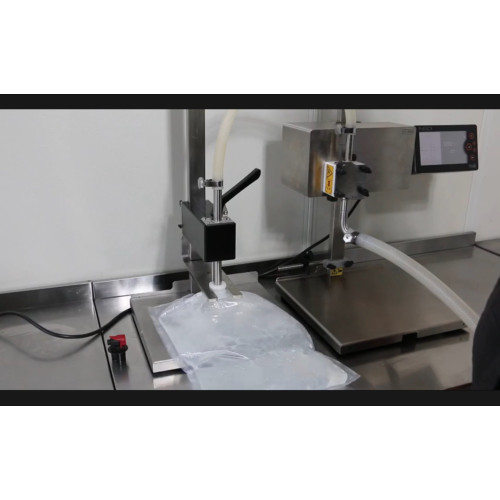

Bag-in-Box® and “Stand up Pouch” filling extension

• - art. 30825800, Pouch holder with filling nozzle as an extension of FILLOGY® Liquid S; holding plate may have to be adapted
• - art. 30300601, Stand 70 cm, with rod 20 x 40 mm

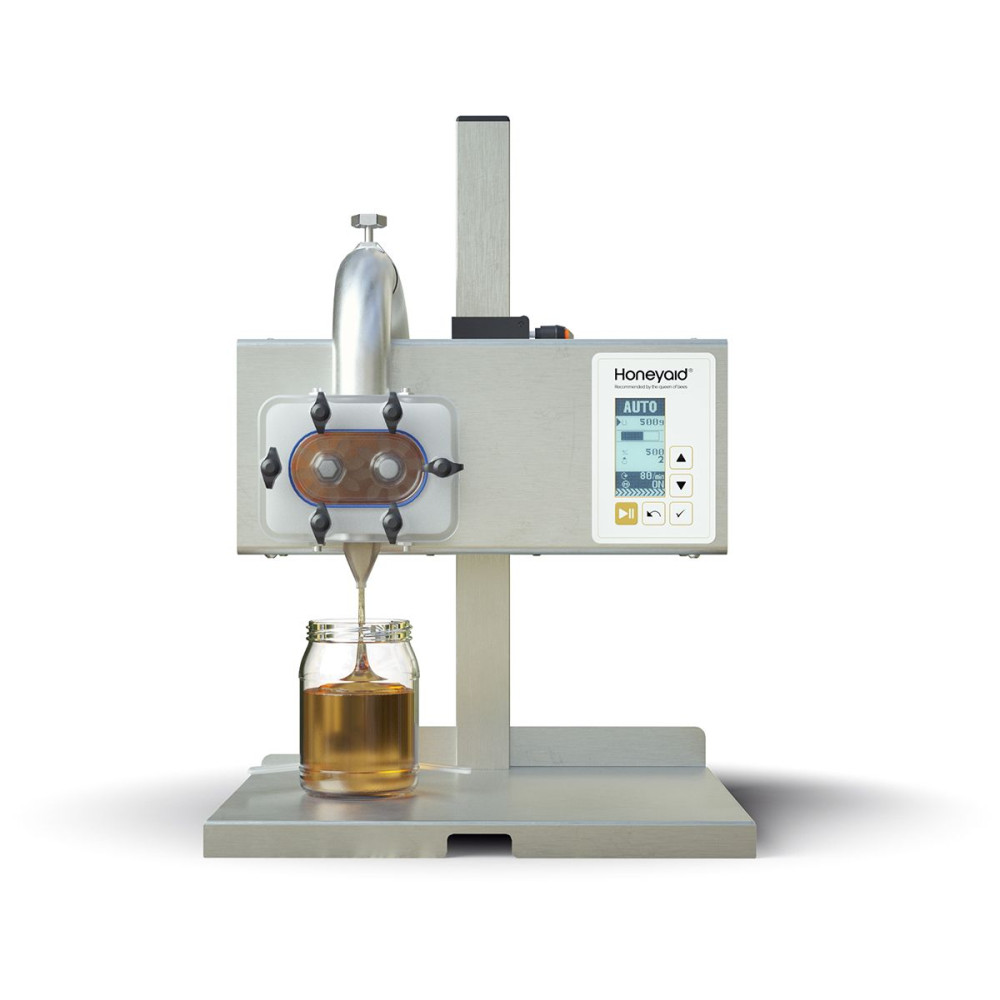

Honey filling extension

• - art. 30891500, FILLOGY® Neo FG100 (Motor)
• - art. 30383500, Pump head L without gears / rotary pistons; Material: AISI 316L, PETP, Silicone
• - art. 30209500, Pair of gears for gear pump head L, cold filling (2°C-50°C). Material: Polycarbonat (PC)
• - art. 30414400, Filling set Honey, spiral hose inner Ø 40 mm, without gear pump L. Material: AISI 316L, silicone, evoprene, PVC
