Electric centrifugal fruit crusher VORAN RM5,5 – Apple mill

RM5,5—The universal device

Centrifugal mills with replaceable screens. This makes it possible to achieve any desired mash fineness—ideal for the mashing for distilleries. The choice of the most diverse crushing tools and grinding screen enables this mill to also be used for the production of all kinds of fruit and vegetable juices.

Suitable for producing cold-pressed fruit and vegetable juices.

• Scope of supply: cutting screen 9 mm
• Height mash outlet: 470 mm
• Weight: 88 kg
• Discharge height: 1 410 mm
• Height: 1 410 mm
• Width: 730 mm
• Length: 690 mm
• Electrical protection: 16 A
• Connected load: 400V 50Hz (3 phases)
• Motor rating: 5,5 (7,5) kW (PS)
• Nominal rating: up to 4 200 kg/h
• Material: 1.4301 / AISI 304
• Easy cleaning due to tiltable drain

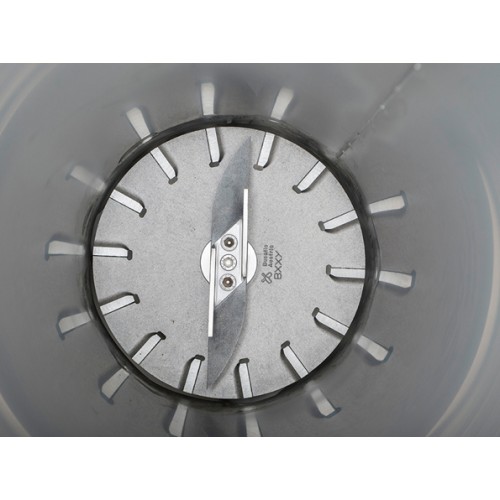

• Exchangeable screen without tools
• Sturdy mill drive unit
• Rollers for easy movement
• Made in Austria

Processable materials: Vegetables, Apples, Pears, Blueberries, Carrots, Manioc, Quince, Beetroot. This is only an example list of materials that have been tested and processed in practice.

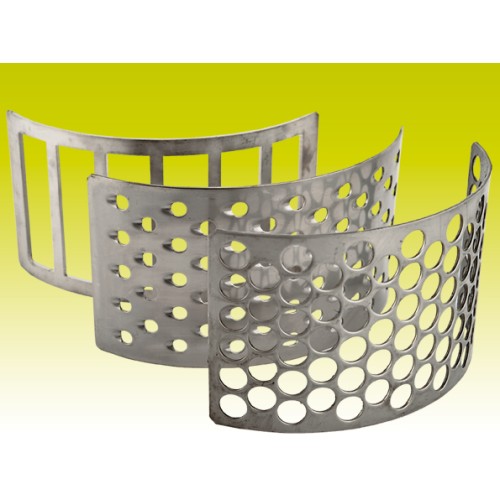

Different screens can be used for different fruits. For example cutting screens and slotted screen each in different sizes for different fruit.

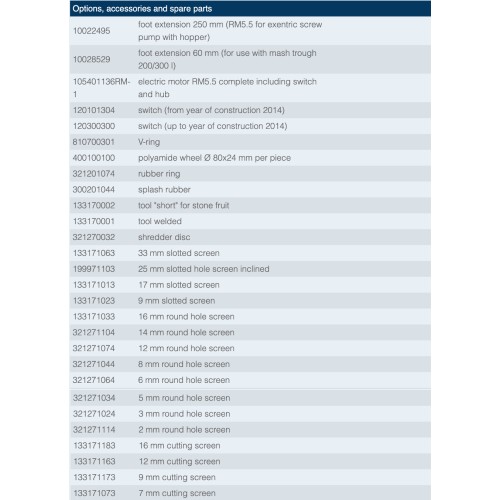

Options:

• Different screens
• Short rotor
• 60-mm foot extension for mash trough
• Corresponding mash troughs available in the sizes 200 l (image) and 300 l
