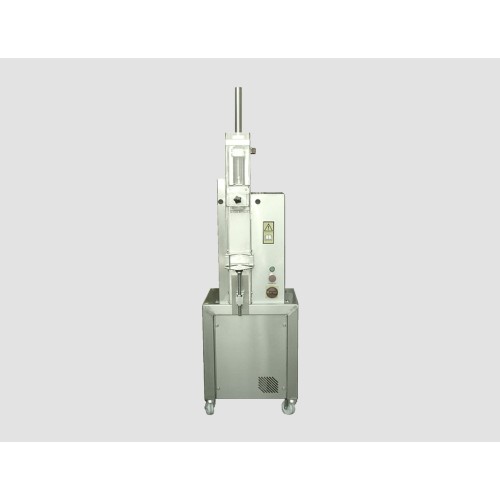

Boucheuse semi-automatique TPF

Mechanical Corker for mushroom corks and natural corks.

• Working: Gear Motor 0,75 kW
• Production: 700 ÷ 800 Bottles/h
• Stainless steel jaws
• Manual loading of the corks
• Suitable for Champagne corks and straight natural cork
• stoppers
• Champagne corks: 31,5mm diameter
• Straight natural cork stoppers: 26-30mm diameter
• Height of bottles: up to 375mm
• Corking time: about 1,8 seconds
• Dimensions: 520x520x1780 mm
• Weight: 100 kg
• Made in Italy

ELECTRIC STARTING

380 Volt, 50 Hz three-phase motor

OPTIONAL

Inverter for 230 Volt, 50/60 Hz mono-phase feeding

All models of corking machine are manufactured entirely in AISI 304 stainless steel; the corking head is equipped with four ground and lapped jaws.

Synthetic or natural corks with Ø 22, 24, 26 may be used and, on request, the machines may also be equipped for corks Ø 28 (except for the model Corker-PF).

The cork is inserted rapidly, in about 2 seconds, to create less pressure on the neck of the bottle. The maximum height of cork to be used with our corkers is 50mm.

The models “Corker-T.P.A.”, “Corker-T.M.” e “Corker-T.M.V.” are equipped with a hopper with mechanical agitator to allow continuous cork feed.
