Villimisseade Bag-in-Box® / “Stand up Pouch” – täiteseade BIBF-20

Tootja: Apple Press Ltd.
Apple Press Ltd.
Mudel: BIBF-20
729.00€ / Ühiku hind
602.48€ / Ühiku hind ilma KM-ta
Saadavus:
Pre-Order
Hinnang:
0/5 (0 arvamust)
Makse:
  • Visa
Tarnehind:
Itella Smartpost Parcel Locker

Itella Smartpost Parcel Locker - Delivery to Latvia (2 business days) - 5.12€

DPD

DPD - Delivery to Latvia (1 business days) - 8.66€

Express Post - Delivery to Latvia (1 business days) - 11.70€

Itella Smartpost

Itella Smartpost - Delivery to Latvia (2 business days) - 16.35€

UPS Standard - Delivery to Latvia (2 business days) - 33.69€

Latvian Post - Delivery to Latvia Priority (1-2 weeks) - 68.98€

UPS Express - Delivery to Latvia (1 business days) - 164.74€

Rohkem tarnemeetodeid
  • Adjustable height: 90-140 mm
  • Filling plate: 650x600 mm
  • Suitable for Bag-in-Box® bags: 1,5 l, 3 l, 5 l, 10 l, 20 l
  • Suitable for “Stand up Pouch” bags: 1 l, 1,5 l, 2 l, 3 l, 5 l
  • Material: stainless steel AISI 304 (18/10)
  • Electronic flow meter FMBB17 (made in Romania)
  • Productivity of the flowmeter: 10-120l / min
  • Max Temperature of fluid: 80 °C
  • Min Pressure: 0,3 Bar
  • Max Pressure: 15 Bar
  • Stainless steel filling gun with a holder
  • Dimensions: 600x650x500mm
  • Weight: 14 kg

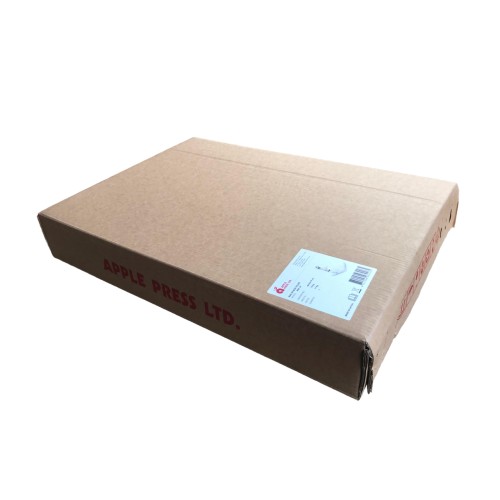

  • Dimensions and weight of the packaging: 78 x 56 x h13 cm, 15 kg
  • Made in Latvia

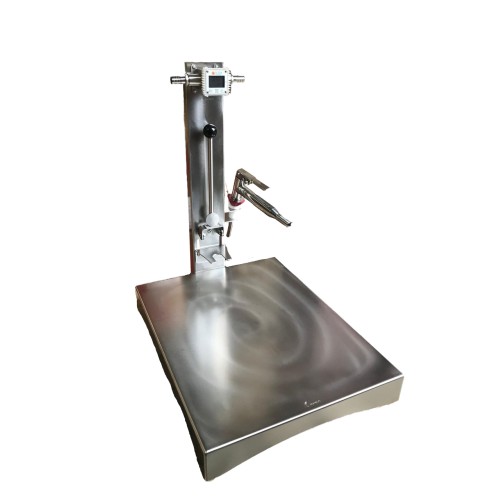

The filler is designed for filling Bag-in-Box® bags, “Stand up Pouch” bags with juice, wine and other liquids. The filler is made entirely of stainless steel. The filling proceeds by gravity or using a pump. There are rubber legs on the basis of the filler for stable work.

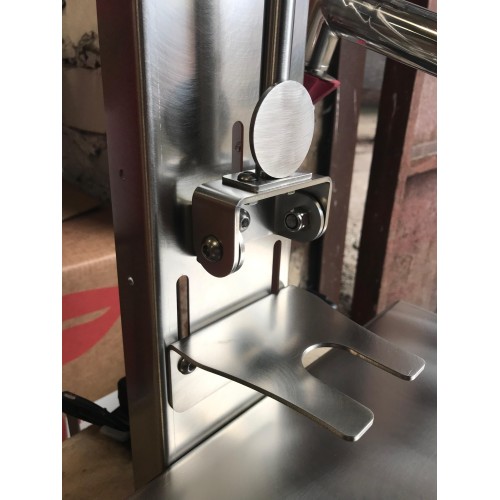

Adjustable height of the holder

Adjustable height of the holder and the lever allow to fill Bag-in-Box® bags as well as “Stand up Pouch” bags. The lever allows easily cork the bags.

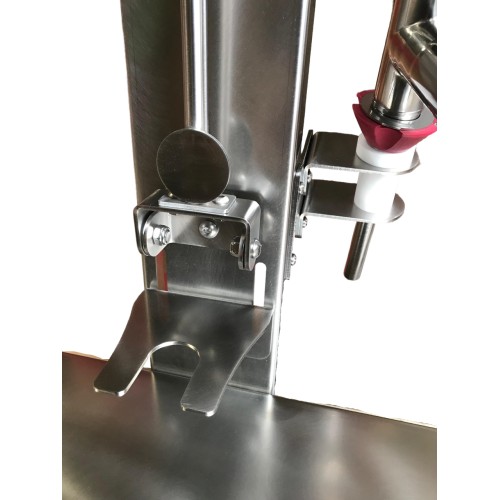

Stainless steel filling gun with a holder

  • Inlet: 20 mm hose connection
  • Outlet tube diameter: 16 mm (external diameter)
  • Tube length: 150 mm starting from underneath the rubber

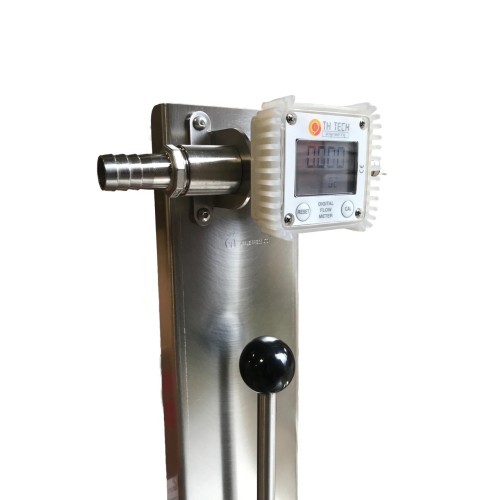

Electronic flow meter FMBB17 with a holder

  • Productivity of the flowmeter: 10-120l / min
  • Max Temperature of fluid: 80 °C
  • Min Pressure: 0,3 Bar
  • Max Pressure: 15 Bar
  • Inlet: 20 mm hose connection
  • Outlet: 20 mm hose connection

Battery-powered digital flowmeter allows filling bags with 1% accuracy. The flowmeter is certified for food use and suitable for contact with juice, wine and milk. The flowmeter equipped with reset function, a cumulative totalizer reset, and a non-resettable totalizer. Simply pressing the button will reset the dosed quantity to start a new filling. The meter can be calibrated to improve its accuracy based on operator’s installations or used liquid.

Made with innovative materials that make it strong and extremely easy to handle thanks to its light weight, it is suitable for all alimentary liquids such as wine and beer. The electronic flow meter has a reset button to be used after each use.

The calibration function also allows the use for gravitational falls or for small transfer by low flow rate pumps. A large LCD display provides an easy reading of the partial and total amount of litres counted.

Thanks to the special new “helical spiral” turbine, the Bag in Box flow meter has the best accuracy ever achieved and does not suffer from interference by small solid particles, unlike the standard turbines. The instrument is pow- ered by two AAA size batteries easily available that guarantee 2 years of autonomy with moderate use or one year of autonomy with intensive use.

MAIN FEATURES OF THE FLOW METER

  • Nylon food grade body
  • Special “helical spirale” turbine
  • Rotor made by polyamide resin + ferrite (food grade)
  • Pcb module with LCD display with 5 digit
  • Reset mode to partial counter and total counter
  • Flow meter and liter counter mode
  • Flow rate indication can be calibrated
